Structure Parameter

Specification: DN6，DN8，DN10，DN13

OD: 10.5mm，12mm，13.5mm，18mm

ID: 6.6mm，8.4mm，9mm，13mm

Technical Parameter

Working Pressure: 10bar, Working Temperature: 90℃, Be suitable for drinking water.

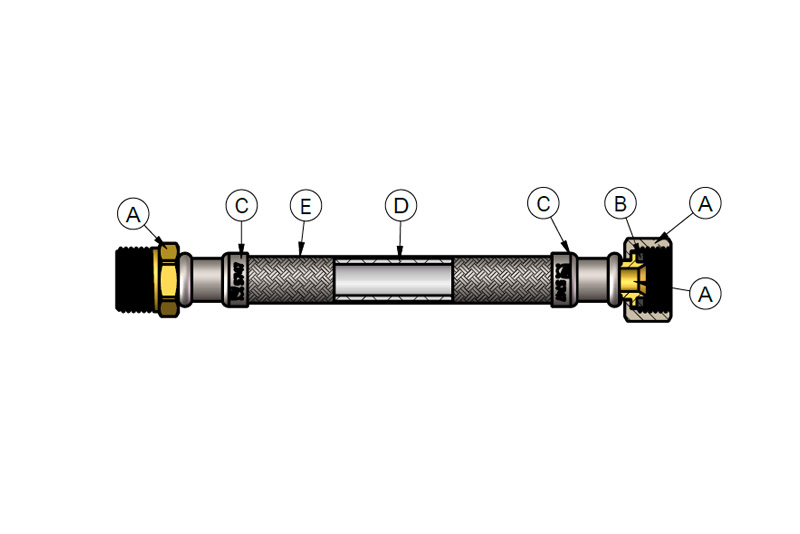

Material

A: Brass, B: Silicon、EPDM, C: AISI304

D: PEX、TPV, E: AISI304

Both Ends

Male Thread: M8X1，M10X1

Nut: F1/4，F3/8，F1/2，F3/4，F7/8，F9/16，F15X1

Male Thread: M3/8，M1/2，M3/4

Elbow: G1/2
